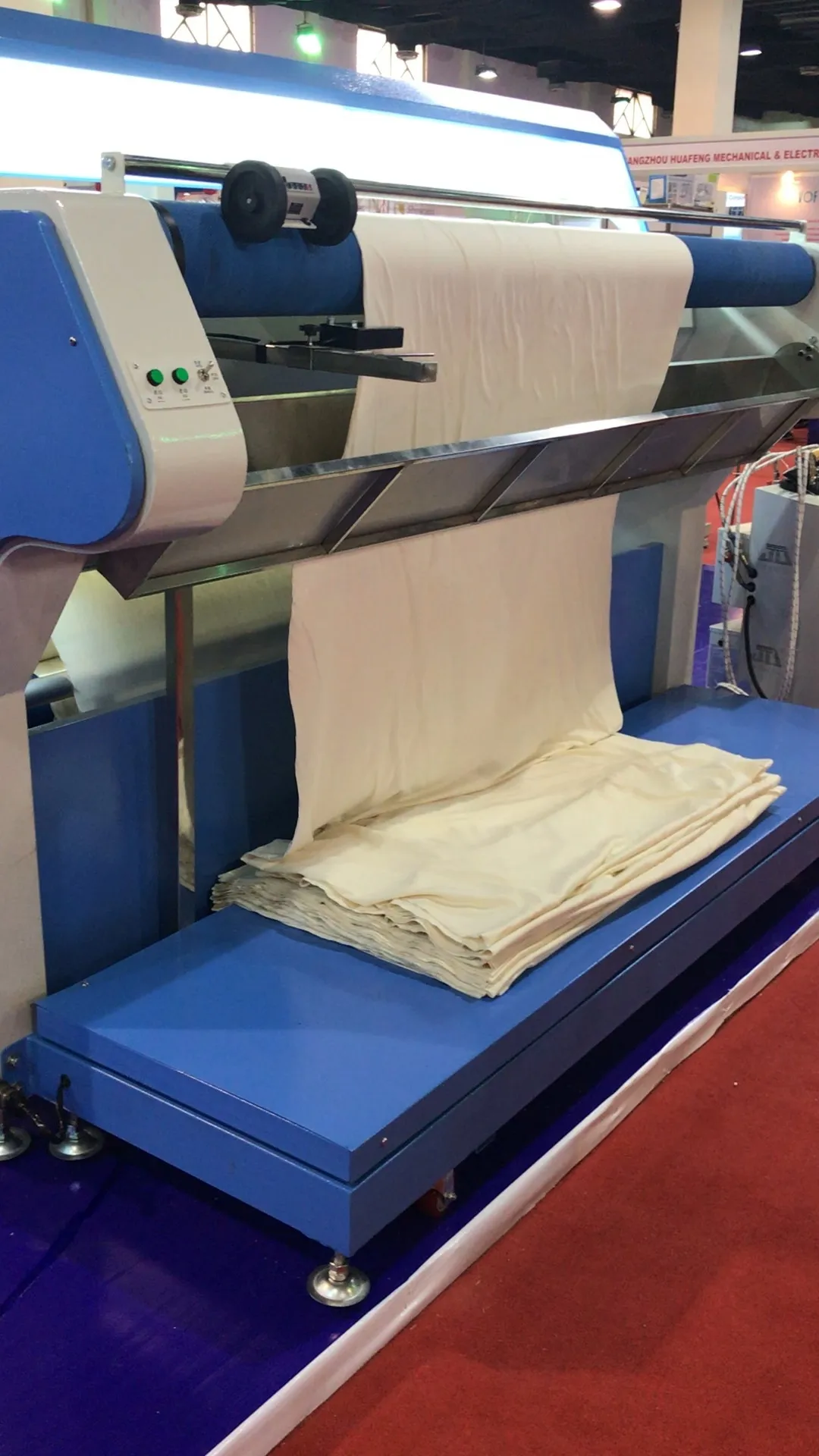

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing) 1

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing) 2

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing)

Name: YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing)
Uploaded: 2026-05-26T09:45:21+08:00
Description: The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.

The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller)

Model: YL-2100C-S-ED YL-2100C-S
Max. Fabric width : 1900mm (74inches) 2100mm (82inches)
Max. roll diameter : 300mm 300mm
Working speed: 1-30m/min 1-30m/min
Total Power: 1.3Kw 1.3Kw
Voltage: 1PH AC 220V 50Hz 1PH AC 220V 50Hz
Machine dimension: 2490x1450x1850mm 2490x1250x1850mm

Inquiry

Write a Review

Product feature

Suitable for a wide range of fabrics, such as: stretch

knitted fabrics, woven fabrics, denim.(Down jacket or

too thin or too slippery fabric need use specially material

roller)

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing) 3

YL-2100C-S-ED:Fabric edge alignment controlling for folding fabric

Infrared ray edge alignment system,error 5mm.

Auto tension-less feeding fabric

With electric eye to release fabric with tension.

Full Width Fabric Inspection

With 55 degree fixed angle inspection screen.

Clear view for fabric inspection

Operation is PLC‑based and managed through a touch‑screen interface.

Humanized operation, support re-inspection

Forward or reversely to facilitate fabric inspection.

Speed adjustable

An imported frequency converter is installed to allow flexible adjustment of the inspection speed.

Equipped with length counter, yard or meter optional.

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing) 10

Accurate Length Counting

A high-precision digital counter supports meter/yard switch (default: m), with ±0.5% counting error and 0.01mm accuracy.

YL-2100C-S YL-2100C-S-ED Knitted & Woven Fabric Inspection Machine (Roll to Relaxing) 11

● Popular brand component

1. Japan famous brand "Mitsubishi" inverter.
2. French famous brand "Schneider"Relay.
3. Taiwan famous brand "TECO" AC contactor.
4. Use A3 plate, Q235.

Optional

● Weighing device.

● Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).

Standard Configuration

①

Electric eye is installed at fabric feeding position，control feeding frequency, avoid high elastic fabric be elongated or transformed.

②

Edge alignment sensor ensure the accurate fabric edge alignment.

③

Equipped with length counter, which can exactly calculate the length of fabric.

Specification

Model	YL-2100C-S-ED	YL-2100C-S
Max. Fabric width	1900mm (74inches)	2100mm (82inches)
Max. Fabric roll diameter	300mm
Working speed	1-30m/min
Total Power	1.3Kw
Voltage	1PH AC 220V 50Hz
Machine dimension	2490x1450x1850mm	2490x1250x1850mm

Optional Configuration

Fabric end cutter

Weighing device
