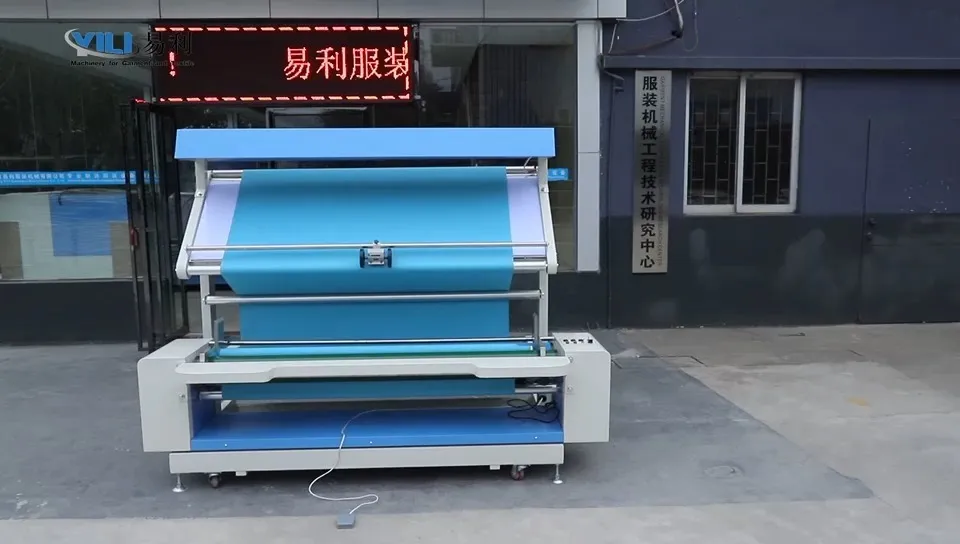

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 1

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 2

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 3

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control)

Name: YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control)
Uploaded: 2026-05-26T14:07:32+08:00
Description: The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.

The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.Suitable for woven fabrics.(Not suitable for down jacket or too thin or too slippery fabric)(Down jacket or too thin or too slippery fabric need use specially material roller)

Model： YL-1800A-ED
Max. Fabric width ：1750mm (68inches)
Max. roll diameter： 400mm
Working speed ：1-30m/min
Total Power ：0.7Kw
Voltage： 1PH AC 220V 50Hz
Machine dimension ：2610x1500x1770mm

Inquiry

Write a Review

Product feature

Suitable for woven fabrics.(Not suitable for down jacket or too thin or too slippery fabric)(Down jacket or too thin or too slippery fabric need use specially material roller)

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 4

Fabric edge alignment controlling for re-rolling fabric

Infrared ray edge alignment system,error 5mm.

Length Counting

Equipped with mechanical counter, optional：yard or meter counter.

Full Width Fabric Inspection

With 55 degree fixed angle inspection screen.

Clear view for fabric inspection

Upper lamp shade and lower light box ,equipped with D65 LED light (1600lux). Upper lamp shade: 4pcs light,lower light box:8pcs light.

Tension adjustable & Speed adjustable

As per different fabric rolling requirement, it can perform tensed or relaxed rolling through tension adjustment shaft.Equipped with imported frequency converter makes the speed of inspection be controlled flexibly.

Available for Roll to Roll

Please noted that this model without reverse function,only forward running.

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 11

Suitable for woven fabrics.(Not suitable for down jacket or too thin or too slippery fabric)(Down jacket or too thin or too slippery fabric need use specially material roller)

YL-1800A-ED Woven Fabric Inspection Machine (Roll to Roll with edge alignment control) 12

● Popular brand component

1. Japan famous brand "Mitsubishi" inverter.
2. French famous brand "Schneider"Relay.
3. Taiwan famous brand "TECO" AC contactor.
4. Use A3 plate, Q235.

Optional

● High precision digital counter

● Weighing device.

● Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).

Standard Configuration

①

Edge alignment sensor and moveable re-winding rack driven by motor to ensure the accurate fabric edge alignment.

②

Equipped with mechanical counter, which can calculate the length of fabric.

Specification

Model	YL-1800A-ED
Max. Fabric width	1750mm (68inches)
Max. Fabric roll diameter	400mm
Working speed	1-30m/min
Total Power	0.7Kw
Voltage	1PH AC 220V 50Hz
Machine dimension	2610x1500x1770mm

Optional Configuration

Fabric end cutter

Weighing device
