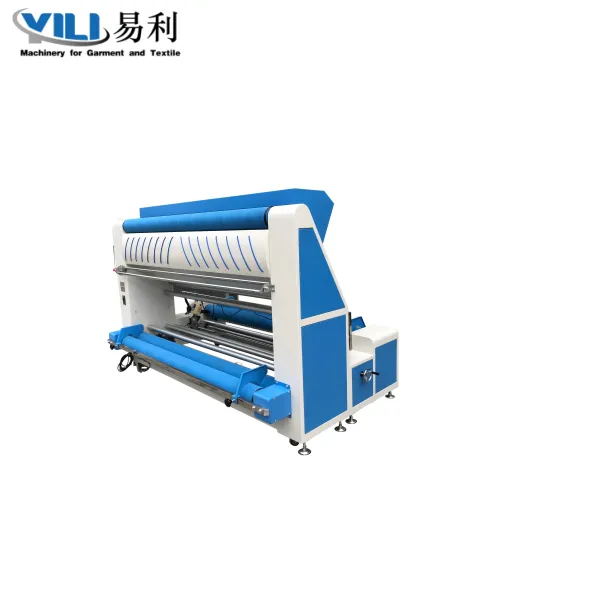

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter) 1

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter) 2

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter)

The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller)

Model: YL-2100C-EC YL-2100C-EC-LC

Configuration: Edge cutter Edge cutter & End cutting
Max. Fabric width: 2100mm (82inches) 2100mm (82inches)
Max. roll diameter: 400mm 400mm
Working speed : 1-30m/min 1-30m/min
Total Power: 1.3Kw 1.3Kw
Voltage: 1PH AC 220V 50Hz 1PH AC 220V 50Hz
Machine dimension: 2610x1650x1730mm 2610x1650x1730mm

Inquiry

Write a Review

Product feature

Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller).

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter) 3

Auto tension-less feeding fabric and speed synchronization

With electric eye and unique mechanical and electrical device combination (feeding and re-winding roller both controlled by motor），for making fabric feeding, delivery and re-winding synchronous,which makes high elastic fabric to avoid be elongated or transformed.

Spreading fabric system

With two sets of fabric spreading roller system,remove fabric wrinkle(for knitted fabric) .

Length Counting

Equipped with mechanical counter, can switch meter/yard(default:m).

Full Width Fabric Inspection

With 55 degree fixed angle inspection screen.

Clear view for fabric inspection

Tension adjustable & Speed adjustable

As per different fabric rolling requirement, it can perform tensed or relaxed rolling through tension adjustment switch.Equipped with imported frequency converter makes the speed of inspection be controlled flexibly.

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter) 9

Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller)

YL-2100C-EC YL-2100C-EC-LC Knitted & Woven Fabric Inspection Machine (Roll to Roll with edge cutter) 10

● Popular brand component

1. Japan famous brand "Mitsubishi" inverter.
2. French famous brand "Schneider"Relay.
3. Taiwan famous brand "TECO" AC contactor.
4. Use A3 plate, Q235.

Optional

● Weighing device.

● Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).

Standard Configuration

①

Electric eye is installed at fabric feeding position，control feeding frequency, avoid high elastic fabric be elongated or transformed.

②

Spreading fabric roller driven by motor,spreading the knitted fabric wrinkle and open the curled edges .

③

Equipped with two edge cutter

Specification

Model	YL-2100C-EC-LC	YL-2100C-EC
Configuration	Edge cutter & End cutting	Edge cutter
Max. Fabric width	2100mm (82inches)	2100mm (82inches)
Max. Fabric roll diameter	400mm
Working speed	1-30m/min
Total Power	1.3Kw
Voltage	1PH AC 220V 50Hz
Machine dimension	2610x1650x1730mm	2610x1450x1730mm
