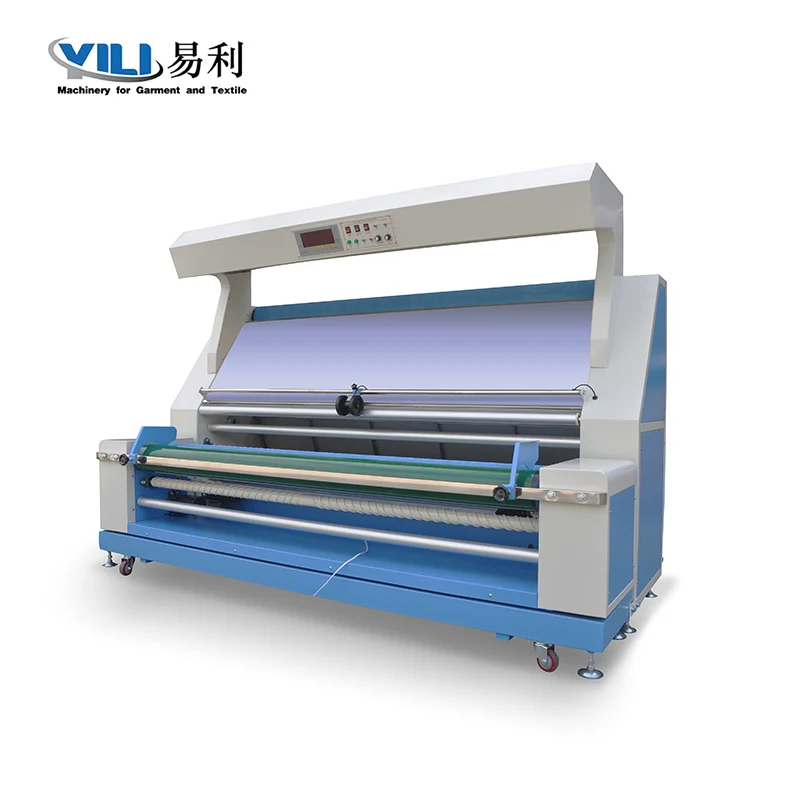

YL-2100C-ED YL-2100C-ED-LC-W Knitted and Woven Fabric Inspection and Rolling Machine (Roll to Roll with edge alignment control) 1

YL-2100C-ED YL-2100C-ED-LC-W Knitted and Woven Fabric Inspection and Rolling Machine (Roll to Roll with edge alignment control) 2

YL-2100C-ED YL-2100C-ED-LC-W Knitted and Woven Fabric Inspection and Rolling Machine (Roll to Roll with edge alignment control)

This is a popular model suitable for conventional knitting, woven and other fabrics. It has functions such as rewinding, automatic edge alignment, and automatic length measurement. It can also be equipped with weighing and fabric breaking functions, making it easier to use.

Model: YL-2100C-ED, YL-2100C-ED-LC-W
Max. Fabric width: 2050mm (80inches), 2050mm (80inches)
Max. Fabric roll diameter: 400mm
Working speed: 1-30m/min
Total Power: 1.1Kw

Machine Dimensions:2610*1420*1920mm 2610*1720*1920mm

Inquiry

Write a Review

Product Feature

Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim. (Down jacket or too thin or too slippery fabric need use specially material roller).

Auto Tension-Less Feeding Fabric And Speed Synchronization

With electric eye and unique mechanical and electrical device combination (feeding and re-winding roller both controlled by motor)，for making fabric feeding, delivery and re-winding synchronous, which makes high elastic fabric to avoid be elongated or transformed.

Fabric Edge Alignment Controlling For Re-Rolling Fabric

Infrared ray edge alignment system, error 5mm.

Spreading Fabric System

Dual‑roller wrinkle‑removal system designed for smooth processing of knitted fabrics.

Accurate Length Counting

Equipped with high precision digital counter, can switch meter/ yard(default:m), counting error: ±0.5%, precision 0.01mm.

Wide-Angle Inspection with Unobstructed View.

Available For Roll To Roll.

Humanized Operation, Support Re-Inspection(Forward And Reverse)

Bi-directional winding spindle with foot-pedal control enables effortless fabric inspection and operation.

PRODUCT ADVANTAGES

Tension Adjustable & Speed Adjustable

As per different fabric rolling requirement, it can perform tensed or relaxed rolling through tension adjustment switch. An imported frequency converter provides flexible, adjustable inspection speed control.

Popular Brand Component

Japan famous brand "Mitsubishi" inverter.French famous brand "Schneider"Relay.Taiwan famous brand "TECO" AC contactor.Use A3 plate, Q235.

Optional

Weighing device. Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).

Generality

Can be used for jeans, yoga pants, knitted casual pants, etc.

Specification

Model	YL-2100C-ED	YL-2100C-ED-LC-W
Max. Fabric width	2100mm (82inches)	2100mm (82inches)
Max. roll diameter	400mm	400mm
Working speed	1-30m/min	1-30m/min
Total Power	1.1Kw	1.1Kw
Voltage	1PH AC 220V 50Hz	1PH AC 220V 50Hz
Machine dimension	2610x1420x1920mm	2610x1420x1920mm

Product details

YL-2100C-ED1

YL-2100C-ED
