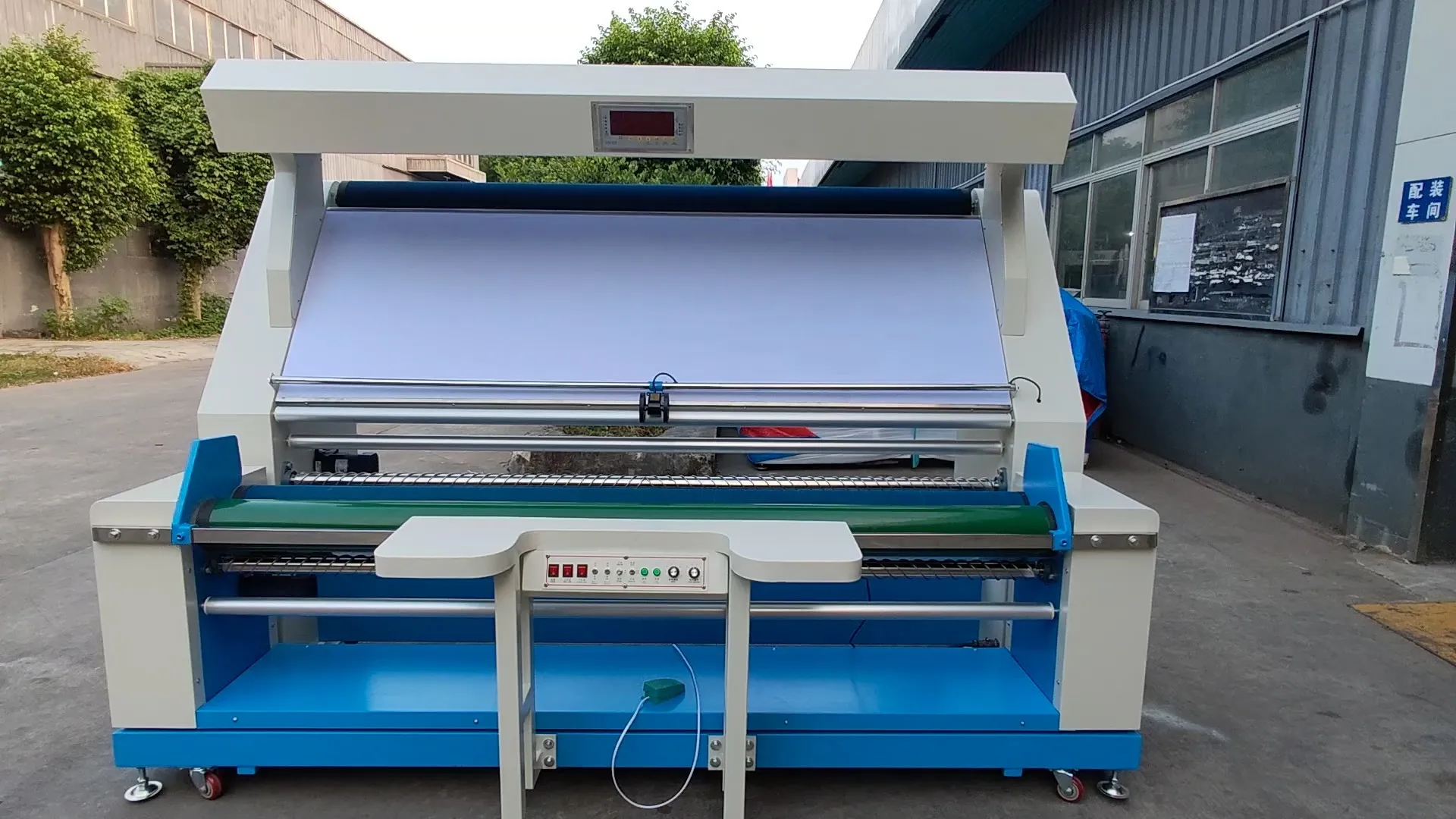

YL-1800C-R-ED YL-2100C-R-ED Knitted & Woven Fabric Inspection Machine (Relaxing to Rolling with edge alignment control)
The Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller)
Model : YL-1800C-R-ED YL-2100C-R-ED
Max. Fabric width : 1750mm (68inches) 2050mm (80inches)
Max. roll diameter : 400mm
Working speed: 1-30m/min
Total Power :1.1Kw
Voltage: 1PH AC 220V 50Hz
Machine dimension : 2310x1530x2080mm 2610x1530x2080mm
Max. Fabric width : 1750mm (68inches) 2050mm (80inches)
Max. roll diameter : 400mm
Working speed: 1-30m/min
Total Power :1.1Kw
Voltage: 1PH AC 220V 50Hz
Machine dimension : 2310x1530x2080mm 2610x1530x2080mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product feature
- Compatible with a variety of fabrics including stretch knits, wovens, and denim. (Note: Down jackets, ultra‑thin, or excessively slippery fabrics require specially designed material rollers.)
Fabric edge alignment controlling for rolling fabric
Infrared ray edge alignment system,error 5mm.
Spreading fabric system
Dual fabric spreading rollers are equipped to effectively remove wrinkles (specially for knitted fabrics).
Accurate Length Counting
Equipped with high precision digital counter, can switch meter/yard(default:m),counting error: ±0.5% ,precision 0.01mm.
Clear view for fabric inspection
Upper lamp shade and lower light box ,equipped with D65 LED light (1600lux). Upper lamp shade: 4pcs light,lower light box:8pcs light.
Humanized operation, support re-inspection
Winding main shaft can rotate forward or reversely to facilitate fabric inspection. Equipped with foot pedal to control ,easy to operate.
Speed adjustable
Equipped with imported frequency converter makes the speed of inspection be controlled flexibly.
Available for Folding to Rolling
Before inspection in Folding,After inspection in Rolling
● Popular brand component
1. Japan famous brand "Mitsubishi" inverter.
2. French famous brand "Schneider"Relay.
3. Taiwan famous brand "TECO" AC contactor.
4. Use A3 plate, Q235.
2. French famous brand "Schneider"Relay.
3. Taiwan famous brand "TECO" AC contactor.
4. Use A3 plate, Q235.
● Weighing device.
● Fabric Roll End Cutter (Full width cutting at the end of processed roll, fast and accurate).
Standard Configuration
①
Edge alignment sensor and moveable re-winding rack driven by motor to ensure the accurate fabric edge alignment.
②
Two sets of Spreading fabric roller driven by motor,spreading the knitted fabric wrinkle and open the curled edges .
③
Equipped with high precision digital counter, which can exactly calculate the length of fabric.
④
Equipped with counting display and control panel easy to operate.
⑤
Equipped with upper and lower light for inspection.
Specification
| Model | YL-1800C-R-ED | YL-2100C-R-ED |
| Max. Fabric width | 1750mm (68inches) | 2050mm (80inches) |
| Max. Fabric roll diameter | 400mm | |
| Working speed | 1-30m/min | |
| Total Power | 1.1Kw | |
| Voltage | 1PH AC 220V 50Hz | |
| Machine dimension | 2310x1530x2080mm | 2610x1530x2080mm |
Optional Configuration
01
Fabric end cutter
02
Weighing device
