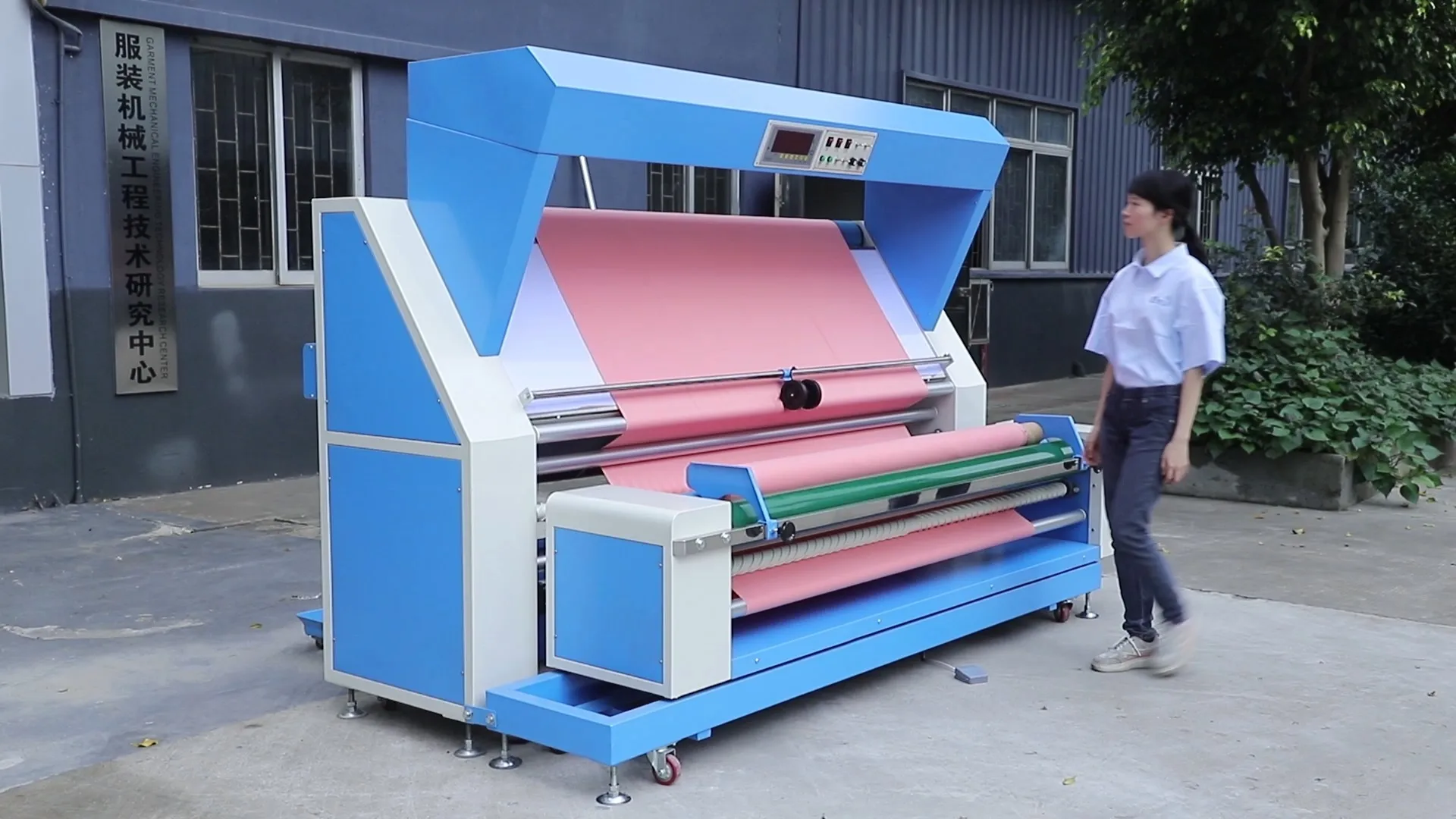

YL-1800C-JS-ED YL-2100C-JS-ED Knitted & Woven Fabric Inspection Machine (Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing) 1

YL-1800C-JS-ED YL-2100C-JS-ED Knitted & Woven Fabric Inspection Machine (Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing) 2

YL-1800C-JS-ED YL-2100C-JS-ED Knitted & Woven Fabric Inspection Machine (Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing) 3

YL-1800C-JS-ED YL-2100C-JS-ED Knitted & Woven Fabric Inspection Machine (Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing)

Name: YL-1800C-JS-ED YL-2100C-JS-ED Knitted & Woven Fabric Inspection Machine (Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing)
Uploaded: 2026-05-25T16:21:38+08:00
Description: Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.

Yili fabric inspection machine adopts imported electrical appliances, runs smoothly, and has a long service life. It can be customized according to customer requirements to meet personalized requirements.Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller).

Model : YL-1800C-JS-ED YL-2100C-JS-ED
Max. Fabric width : 1800mm (72inches) 2100mm (82inches)
Max. Fabric roll diameter: 350mm 350mm
Working speed: 1-30m/min 1-30m/min
Total Power 1.3Kw 1.3Kw
Voltage : 1PH AC 220V 50Hz 1PH AC 220V 50Hz
Machine dimension : 2310x1450x1920mm 2610x1450x1920mm

Inquiry

Write a Review

Product Advantages

Spreading fabric system

A dual‑roller spreading system is integrated to eliminate fabric wrinkles, especially for knitted materials.

High‑Precision Digital Counter

Switchable between meters/ yards (default: m) with ±0.5% accuracy and 0.01mm precision for reliable length control.

Full Width Fabric Inspection

With 55 degree fixed angle inspection screen.

Fabric edge alignment controlling for re-rolling fabric

Infrared ray edge alignment system,error 5mm.

YL-2100C-JS-ED2 (2)

YL-2100C-JS-ED (1)_看图王_副本

Product Advantages

YL-2100C-JS-ED2 (2)

YL-2100C-JS-ED (1)_看图王_副本

Fabric edge alignment controlling for re-rolling fabric

A dual‑roller spreading system is integrated to eliminate fabric wrinkles, especially for knitted materials.

High‑Precision Digital Counter

Switchable between meters/ yards (default: m) with ±0.5% accuracy and 0.01mm precision for reliable length control.

Accurate Length Counting

Equipped with high precision digital counter, can switch meter/yard(default:m),counting error: ±0.5% ,precision 0.01mm.

Full Width Fabric Inspection

With 55 degree fixed angle inspection screen.

Specification

Model	YL-1800C-JS-ED	YL-2100C-JS-ED
Max. Fabric width	1750mm (68inches)	2050mm (80inches)
Max. Fabric roll diameter	350mm
Working speed	1-30m/min
Total Power	1.3Kw
Voltage	1PH AC 220V 50Hz
Machine dimension	2310x1450x1920mm	2610x1450x1920mm

Product Feature

Suitable for a wide range of fabrics, such as: stretch knitted fabrics, woven fabrics, denim.(Down jacket or too thin or too slippery fabric need use specially material roller).

Advanced Synchro‑Drive System

Motor‑controlled feeding and re‑winding rollers work in precise synchrony to prevent stretching or distortion, ideal for high‑elastic fabrics.

Clear view for fabric inspection

Upper lamp shade and lower light box ,equipped with D65 LED light (1600lux).Upper lamp shade: 4pcs light,lower light box:8pcs light.

Humanized operation, support re-inspection

Winding main shaft can rotate forward or reversely to facilitate fabric inspection. Equipped with foot pedal to control ,easy to operate.

Dual‑Mode Rolling with Smart Tension Control

Switch between tensioned or relaxed rolling to match varied fabric demands. An imported frequency converter enables flexible, precise speed adjustment for optimized inspection efficiency.

Popular brand component

1.Japan famous brand " Mitsubishi " inverter.

2.French famous brand "Schneider “Relay.

3.Taiwan famous brand"TECO"AC contactor.

4.Use A3 plate, Q235

Available for different Fabric Input and Output :

Roll to Roll,Roll to Relaxing,Relaxing to Roll,Relaxing to Relaxing.
