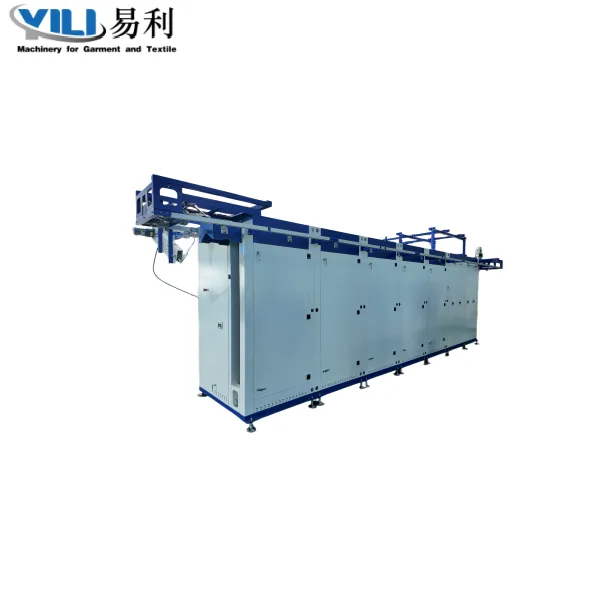

Model:YL-7000QSY Tunnel automatic garment ironing machine

The YL-7000QSY automatic tunnel ironing machine integrates advanced technology to achieve the automation of garment ironing. It offers excellent ironing effects, low labor costs, high efficiency, and occupies a small area. It can meet the needs of ironing a large quantity of clothes, and helps to upgrade the intelligent of garment production.

Model:YL-7000QSY Maximum Capacity:600Pcs/h
Configuration: one steam chamber and two drying chamber & one cooling chamber
Power:15KW Steam consumption:130-180kg/h
Steam spressure: 0.4Mpa Voltage:3Ph AC 380V 50/60Hz
Air consumption: 25L/h Dimensions:8600×1520×2350mm

Inquiry

Write a Review

Product Feature

Using PLC and a fully computerized system to control the operation cycle of steam, heating units, and hot air.

Featuring a constant-temperature steam control system for effective wrinkle elimination and optimal drying.

It has a falling object detection alarm function and can be optionally equipped with an automatic delivery function.

Automatic conveying side entry, sharing wind and heat sources to maximize energy.

Low energy consumption, low noise, and equipped with disinfection devices.

Programmed and controlled machine operatoin through PLC and display screenSuitable for clothing such as T-shirts, sports pants, casual pants, hoodies, children's clothing, home wear, etc., thick and thin fabrics, knitting, weaving, etc. can be used universally.

PRODUCT ADVANTAGES

Maximized Productivity

Heavy-duty fabric up to 300kg per rollMaximizes productivityDecreased risk of human error

Efficient Material Feeding

Adjustable tension controllerWoven material feeding systemAutomatic edge alignment

User interface

Touch screenUser-friendlyMultilingual interface

Investment cost

Easy installationLow maintenance costsAffordable replacements

Specification

Model	YL-7000QSY	Maximum Capacity	600Pcs/h
Configuration	one steam chamber and two drying chamber & one cooling chamber
Power	15KW	Steam pressure	0.4Mpa
Steam consumption	130-180Kg/h	Machine dimension	8600x1520x2350mm
Voltage	3Ph AC 380V 50/60Hz	Air consumption	25L/h

Product details

YL-7000QSY
