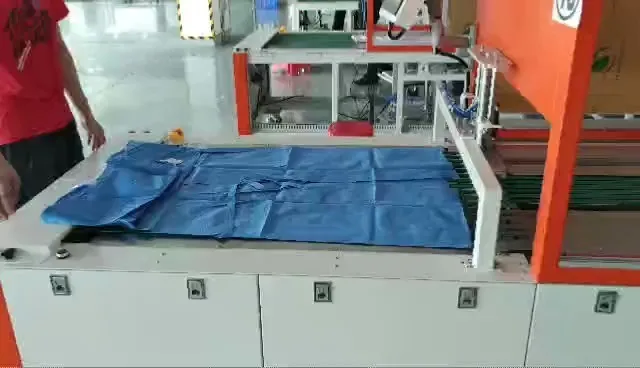

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181 1

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181 2

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181

Manually place the clothing into the left first section of the conveyor belt, and organize the clothing, hang tags, etc. (The feeding belt part is completed).Press the start button, the device will automatically start, and the clothing will flow from the import belt to the left and right of the clothing for rubbing and folding. (Rubble mechanism completed).

Model: YL-QZB-S181

Voltage: AC220V 50HZ

Rated Power: 10Kw

Working air pressure: 0.5-0.7Mpa

Air source displacement: 600L/min

Machine dimension: 11615*1020*1800 mm

Length range before folding: 400-1200mm

Width range before folding: 400-800mm

Length range after folding: 200-400mm

Width range after folding: 220-280mm

Height range after folding: 5-70mm

Plastic bag length range: 280-450mm

Plastic bag width range mm: 240-420mm

Inquiry

Write a Review

Product feature

Applicable clothing: isolation gowns, dust-free gowns, surgical gowns (length must be within the machine parameter range), and similar clothing.

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181 3

The feeding belt part is completed

Manually place the clothing into the left first section of the conveyor belt, and organize the clothing, hang tags, etc

Rubble mechanism completed

Press the start button, the device will automatically start, and the clothing will flow from the import belt to the left and right of the clothing for rubbing and folding

Front and rear longitudinal flipping mechanism completed

Front and rear longitudinal folding (the folding length and method can be adjusted by customers themselves)

Hot pressing mechanism completed

After the folding is completed, the clothing is sent to the third belt for single piece hot pressing molding

Stacked structure completed

After the hot pressing station is completed, the clothing is sent to the fourth section for stacking 1 to 10 pieces

Certificate of Conformity Collection and Placement Institution Completed

After the stacking is completed, the clothing is sent to the fifth belt, and the certificate of conformity is placed on the surface of the clothing

The bagging mechanism and claw retraction mechanism are completed

The clothing is sent to the sixth belt for bagging. After bagging is completed, the discharge belt sends the finished product to the claw return station

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181 10

Vacuum pumping mechanism and heat sealing mechanism completed

The claw conveyor belt transports the clothing to the vacuum sealing station, and the vacuum sealing process begins

Automatic Garment Folding And Packaging machine Model:YL-QZB-S181 11

Vacuum sealing station belt line completed

Finished products flow into the packaging

Optional

● Machine eagerly cutting and sealing.

● The machine automatically peelsoff the adhesive strip and seals

● The machine is automatically glued and sealed

● Flat pockets

Work process

Manual discharg → Automatic bilateral → First foldin → Second folding → Automatic bagging → Automatic sealing

Specification

Model： YL-QZB-S181

Voltage： AC220V 50HZ

Rated Power： 10Kw

Working air pressure： 0.5-0.7Mpa

Air source displacement： 600L/min

Machine dimension： 11615*1020*1800 mm

Length range before folding： 400-1200mm

Width range before folding： 400-800mm

Length range after folding： 200-400mm

Width range after folding： 220-280mm

Height range after folding： 5-70mm

Plastic bag length range: 280-450mm

Plastic bag width range mm: 240-420mm
