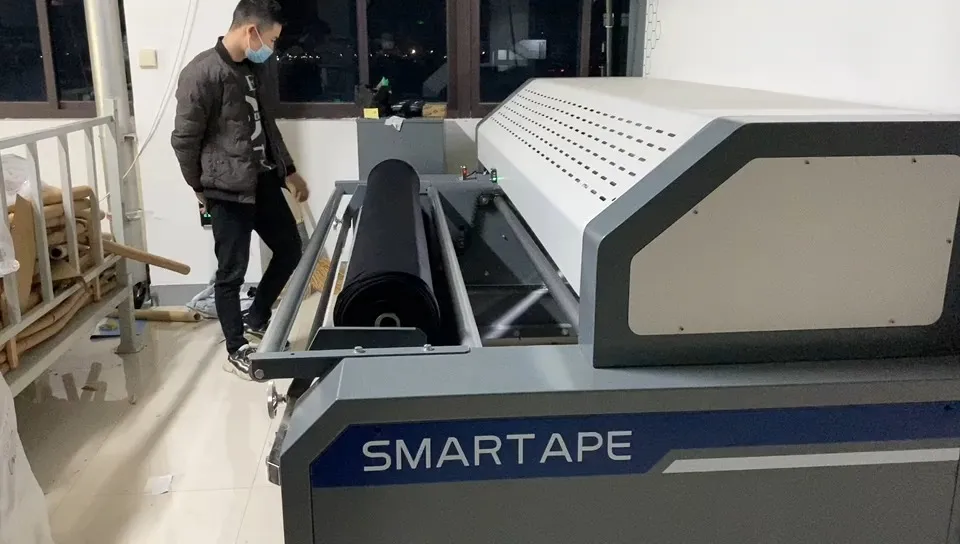

Artificial Intelligence Automatic Fabric Inspection Machine Model:YL-02 1

Artificial Intelligence Automatic Fabric Inspection Machine Model:YL-02 2

Artificial Intelligence Automatic Fabric Inspection Machine Model:YL-02

Color difference automatic inspection.Robot hand automatic feeding fabric.It can replace 2-3 fabric inspectors and has low requirements for inspectors,save high labor cost every year.Traditional fabric inspection speed is about 15m/min(whole fabric inspection),AI fabric inspection machine max. inspection speed is 40m/min.Realize the full inspection of the whole roll fabric,the inspection rate is stable and higher than manual,which can reduce the compensation asked by the customer caused by random inspection and inaccurate inspection.

Model ：YL-02
Voltage AC： 1PH 220V 50HZ
Rated Power ：6.5Kw
Defect inspection rate ：~75%(Visible defect to the naked eye)
Inspection rate Max.：40m/min(not include labeling time)
Detection precision Max：5mm
Fabric working width： 2100mm
Labeling position ：±6cm
Fabric working diameter ：40cm
Length measurement deviation ：≤0.5%
Width detect deviation ：±2cm

Inquiry

Write a Review

Product Feature

Color difference automatic inspection.

Defect automatic inspection.

Robot hand automatic feeding fabric.

Automatic measure length and width.

Automatic stick label.

Automatic edge alignment control.

Automatic score according America 4 point system.

Automatic generate report.

Artificial Intelligence Automatic Fabric Inspection Machine Model:YL-02 11

Product Advantages

High efficiency,reduce labor

It can replace 2-3 fabric inspectors and has low requirements for inspectors,save high labor cost every year.Traditional fabric inspection speed is about 15m/min(whole fabric inspection),AI fabric inspection machine max. inspection speed is 40m/min.

High recognition rate,reduce compensation

Realize the full inspection of the whole roll fabric,the inspection rate is stable and higher than manual,which can reduce the compensation asked by the customer caused by random inspection and inaccurate inspection.

Improve the stability of production capacity

Uninterrupted operation in 24hours,reducing the dependence on perople,preventing production capacity fluctuations caused by staff leave or departures.

Informatization and digitization

Open API interface,connect with ERP,MES and other system,can connect with automatic equipment or manager computer.

Specification

Yili has been developing AI automatic fabric inspection machines since 2018. Based on self-developed artificial intelligence algorithms and self-learning capabilities, the new generation of intelligent fabric inspection machine has features such as color difference inspection, defect inspection, automatic labeling, automatic feeding, and data interaction, leading the industry into a new era of unmanned fabric inspection!

Voltage	AC 1PH 220V 50HZ	Rated Power	6.5Kw
Defect inspection rate	~75%(Visible defect to the naked eye)	Inspection rate	Max. 40m/min(not include labeling time)
Detection precision	Max.5mm	Fabric working width	2100mm
Labeling position	±6cm	Fabric working diameter	40cm
Length measurement deviation	≤0.5%	Width detect deviation	±2cm

Product details

细节图1

细节图2

无张力吹风展平、吸尘结构

打标系统（装置）
