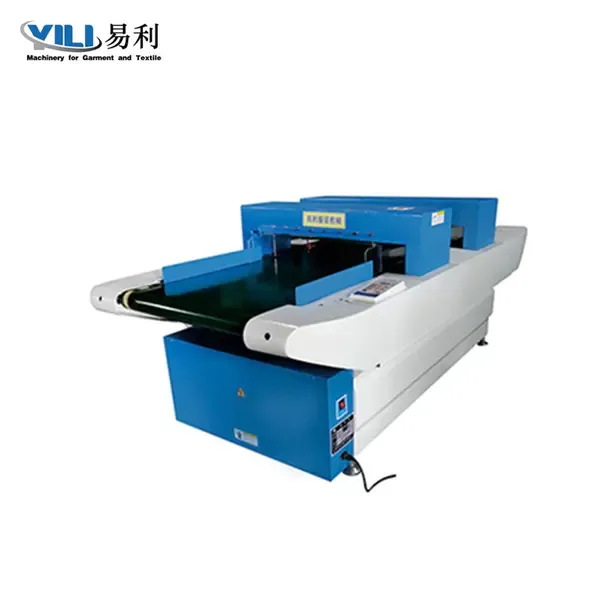

Double Head Needle Detector

Double Head Needle Detector

Double Head Needle Detector      型号:YL-630AS
Used for detecting metal and impurity in seam products.
Function:
1.ABS streamlined shell, luxury and beauty;
2.Two layer ten group of independent probe, higher sensitivity, better stability;
3.This machine has LED panel, easy to operate; intelligent counter can automatically count the qualified goods when being check;with the functiuons of high precision ten segment and LED locating display.
4.Use LED sensitivity setting display and real-time induction display; the main control board adopts imported components; the conveyor belt is imported and non-toxic.
5.When the metal is detected, the machine will alarm , also the conveyor belt will stop and return.
6.Adopt high performance switching power supply and voltage is good adaptability.

Usage:
1.Detect the sewing products' broken needle and ferromagnetic debris.
2.Detect the ferromagnetic impurities contained in the food and drug.
3.Detect the scrap iron and all kinds of alloy debris in the chemical raw materials, rubber and paper products.
4.Detect the iron impurities that contained in the non iron materials.

Specification parameters:
1. Voltage:AC220V-240V/50-60Hz
2.  Power:0.14KW
3.  Detection method:Magnetic sensor
4.Sensitivity:Iron ball   Φ0.8mm
5.  Induction of adjustment: Level 1-10
6.  Detect surface width : 600mm
7. Alarm: Buzzer, light-emitting tube
8.  Transmission speed:32m/min(50Hz)40m/min(60Hz)
9.   Dimension(mm):1650*1050*900
10.   Weight: 220kg
