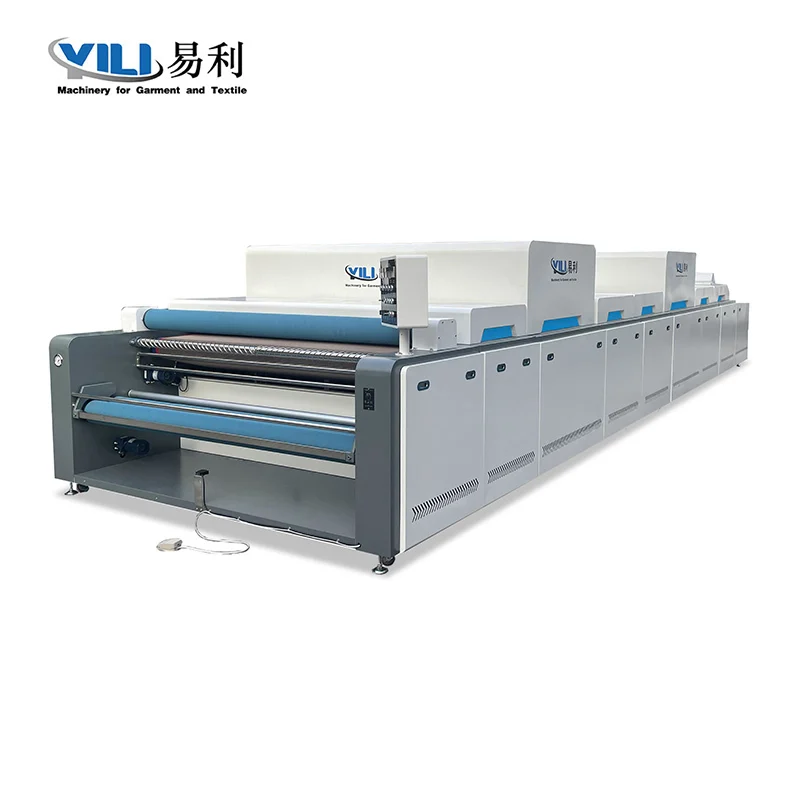

Fabric Shrinking Machine Model: YL-8800

Yili has 20 years of experience in research and development and manufacturing fabric steam shrinking machines. Our steam chamber design can reduce 40% steam consumption and avoid water drips and fabric turning to yellow.

Our machine stabilizes shrinkage rates, improving fabric quality and dimensional stability. After shrinking, the fabric can be directly cut, boosting production. It's an ideal choice for apparel fabric which makers seeking cost - effective, high - quality fabric prep.

Model: YL-8800
Voltage: AC 3PH 380V 50HZ
Steam consumption: 200kg/h
Steam pressure: 0.4-0.7Mpa
Max. Roll fabric diameter: 40cm

Inquiry

Write a Review

Product feature

The machine features one independent pre-heating zone, two steam sponging zones, four heating zones, and one cooling zone, all connect by the conveyor belt.

● Pre-heating zone heatings the mesh belt, preventing water droplets on it during cold winter months due to low temperatures.

● Steam sponging shrinking and softens the fabric. The fully enclosed steam chamber maintains steam temperature, humidity, and pressure for more thorough sponging effect.

Fabric Shrinking Machine Model: YL-8800 2

● Heating forming the fabric.

The four heating zones have upper and lower heating chambers. The lower uses steam heating, and the upper uses electric heating. This saves energy and suits different fabric temperature needs.

Fabric Shrinking Machine Model: YL-8800 3

● Cooling relaxes the fabric

A powerful vacuum cooling device is used to quickly cool the fabric and stabilize its size.

● Vibration function

The entire conveyor belt has a vibration feature, allowing fabric fibers to naturally fluff and relax.

● Dust removal device

The drying area is equipped with a dust remover. It's easy to operate and reduces safety risks from dust accumulation and high temperatures.

● Adjustable drying temperature and speed.

● Special conveyor belt design eliminates concerns about belt deviation.

● Measurement and fabric length counting available.

● Accepts roll - fed fabric and outputs relaxed fabric.

● Shutdown delay device

After shutdown, the conveyor belt runs till the temperature down. This ensures it stops in a cooled state, preventing burnout from sudden high - temperature shutdowns.

● Auto tension

Auto tension - free fabric release ensure fabric feeding without tension.

● Fabric spreading

Fabric spreading roller system smooths the fabric and removes wrinkles for uniform shrinking.

Applicable fabric types

Knit and woven, a variety of general fabric. Especially synthetic for pure cotton, silk, wool, linen, synthetic fiber and mixed fabric.

Product advantages

Fabric Shrinking Machine Model: YL-8800 10

Quality

Effectively ensure that the steam does not leak out.

Fabric Shrinking Machine Model: YL-8800 11

Heat insulation effect

Good thermal insulation and heat insulation effect, the shell will not be hot, the room temperature remains unchanged, creating a good working environment.

Fabric Shrinking Machine Model: YL-8800 12

No dripping water

Ensure that there is no dripping water, avoid dripping water that may cause the fabric to turn yellow and become unusable.

Fabric Shrinking Machine Model: YL-8800 13

Save energy

The steam chamber is fully sealed to minimize the amount of steam used, and to ensure the recycling of steam in the steam chamber and save energy.

Specification

Model	YL-8800
Voltage	AC 3PH 380V 50HZ
Steam consumption	200kg/h
Steam pressure	0.4-0.7Mpa
Max. Roll fabric diameter	40cm
Max. Fabric working width	2100mm
Working speed	1-20m/min
Drying temperature	Max.200
Total power	32Kw
Dimension	931026101650mm
